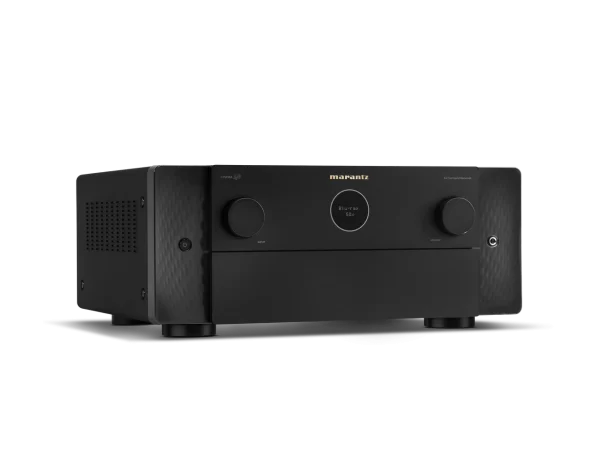

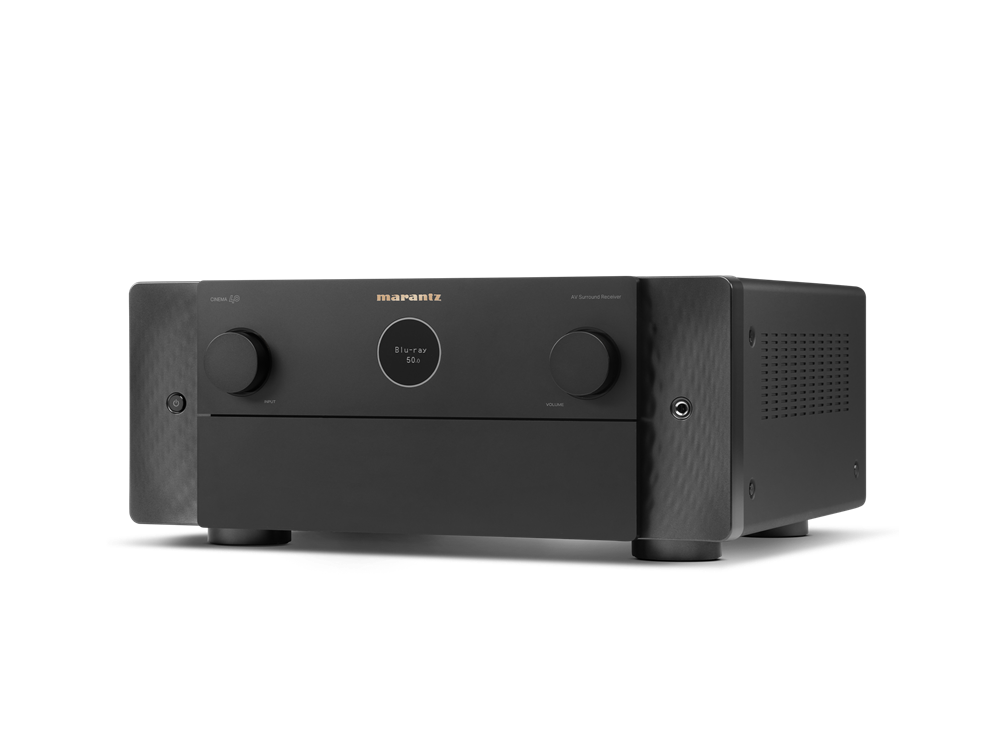

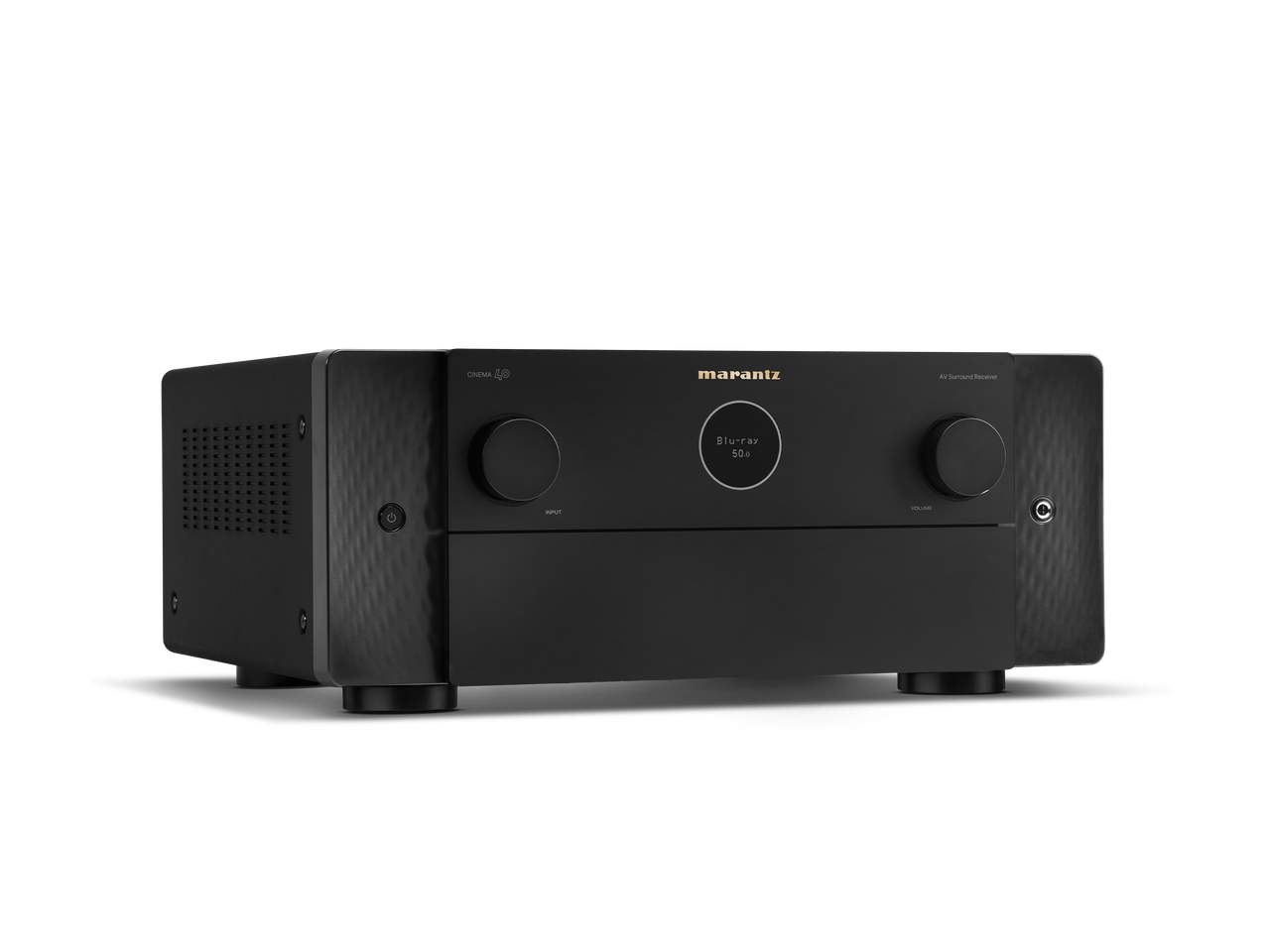

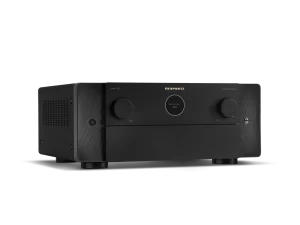

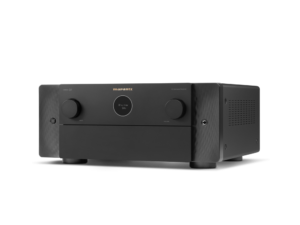

Marantz Cinema 40

Channels

Object-Based Configuration: 9.4

Amplifier Class

Class-AB

Power Output per Channel

2-Channel Driven:

125 W at 8 Ohms / 20 Hz to 20 kHz / 0.05% THD

2-Channel Driven:

110 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD

2-Channel Driven:

165 W at 6 Ohms / 1 kHz / 0.7% THD

1-Channel Driven:

235 W at 6 Ohms / 1 kHz

DTS Compatibility

DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X

Dolby Compatibility

Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD

Auro 3D Support

Yes

Upmixing Technology

Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology

Supported File Formats

2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, DSD, FLAC, MP3, WAV, WMA

HDR Compatibility

HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma

Pass-Through Support

Not Specified by Manufacturer

Upscaling

1080p to 8K UHD

GUI

Yes

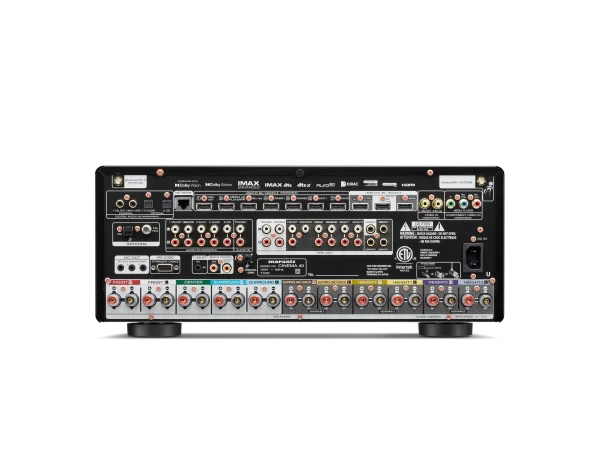

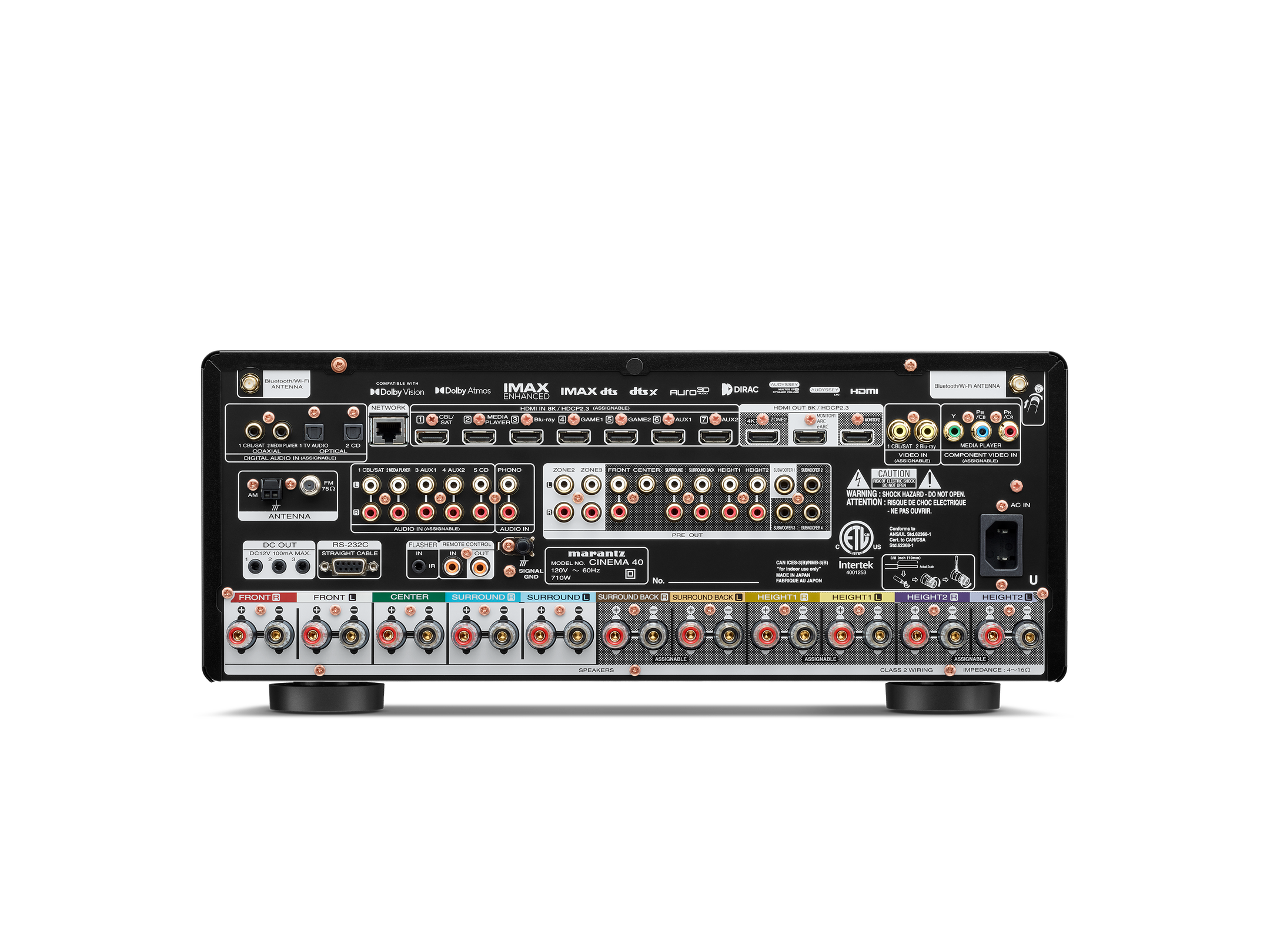

Rear A/V Inputs

7x HDMI

2x Digital Coaxial

2x Optical TOSLINK

2x RCA Composite

1x 3RCA Component

5x Stereo RCA

1x Stereo RCA (Phono) with Ground Screw

Rear A/V Outputs

7x Stereo RCA Zone 2 / Zone 3 Pre-Out

1x RCA Pre-Out

4x RCA Subwoofer Pre-Out

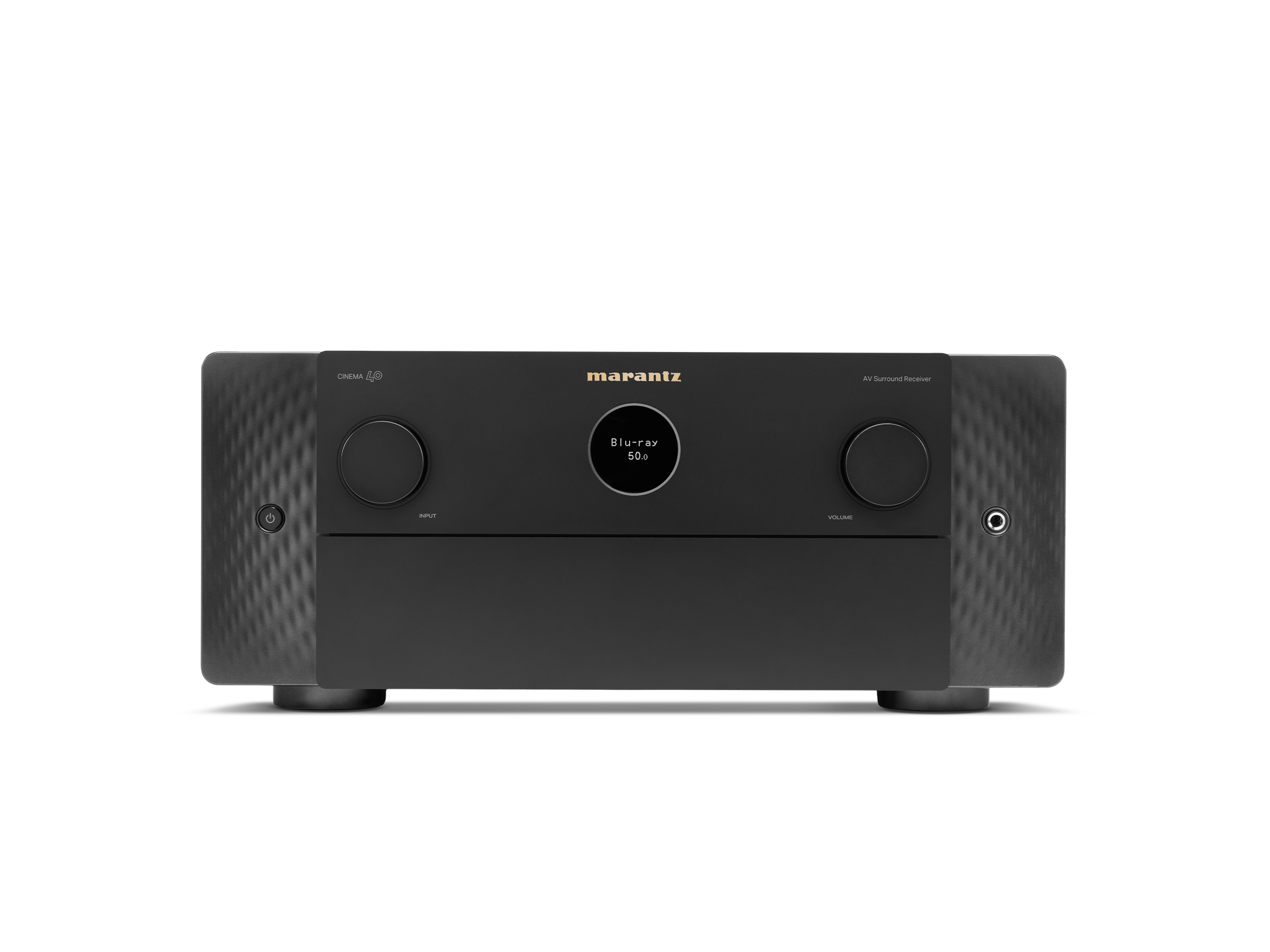

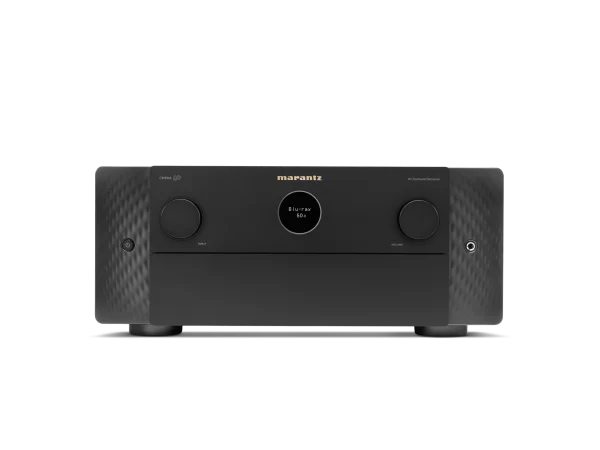

Front I/O

1x 1/4″ / 6.35 mm Headphone Output

1x 1/8″ / 3.5 mm Setup Mic Input

1x USB-A Input/Output

Other Rear I/O

1x AM Block Input

1x FM Coaxial F-Type Input

3x 1/8″ / 3.5 mm (12 V Trigger) Output

1x DE-9 (RS-232C) Input/Output

1x 1/8″ / 3.5 mm (IR) Input

1x RCA (Remote) Input

1x RCA (Remote) Output

Speaker I/O

11x Binding Post Pairs (Front, Center, Height, Height 2, Rear, Rear Surround)

HDCP Support

Yes, Version 2.3

HDMI Compression Modes

4K120A / 8K60A

Audio Return Channel (ARC)

ARC, eARC

HDMI CEC

Yes

Bi-Amp Capability

Yes

Wi-Fi

Yes

Bluetooth

Yes

Wireless Audio Protocols

AirPlay 2, HEOS, Roon Ready, Spotify Connect

External Control Support

Android/iOS Control App

Virtual Assistant

Apple AirPlay, Works with Alexa, Works with Google Assistant, Josh.ai, Siri

Mobile App Compatible

Yes: Android & iOS

App Name: Marantz AVR

Tuner Type

AM, FM

AC Input Power

120 VAC, 60 Hz

Power Consumption

Active: 710 W

No Sound (ECO Off): 110 W

No Sound (ECO On): 65 W

Standby: 0.2 W

CEC Standby: 0.5 W

Dimensions (W x H x D)

17.3 x 7.3 x 16.2″ / 43.9 x 18.5 x 41.1 cm (Antenna Down)

17.3 x 10.0 x 16.2″ / 43.9 x 25.4 x 41.1 cm (Antenna Up)

17.3 x 7.3 x 15.8″ / 43.9 x 18.5 x 40.1 cm (Antenna Removed)

Weight

33.3 lb / 15.1 kg

Package Weight

39.92 lb

Box Dimensions (LxWxH)

22.3 x 19.4 x 11.5″
