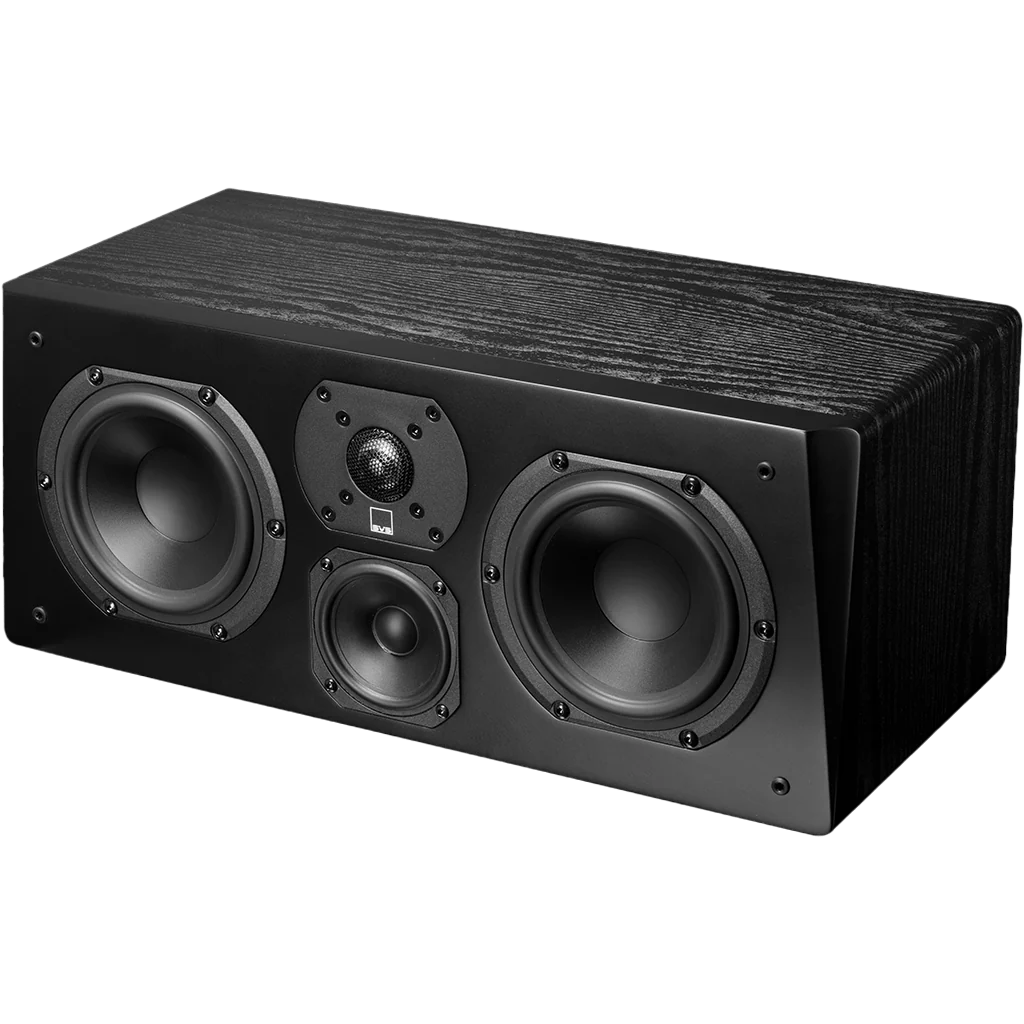

SVS Prime Center

Speaker Specs: SVS Prime Center

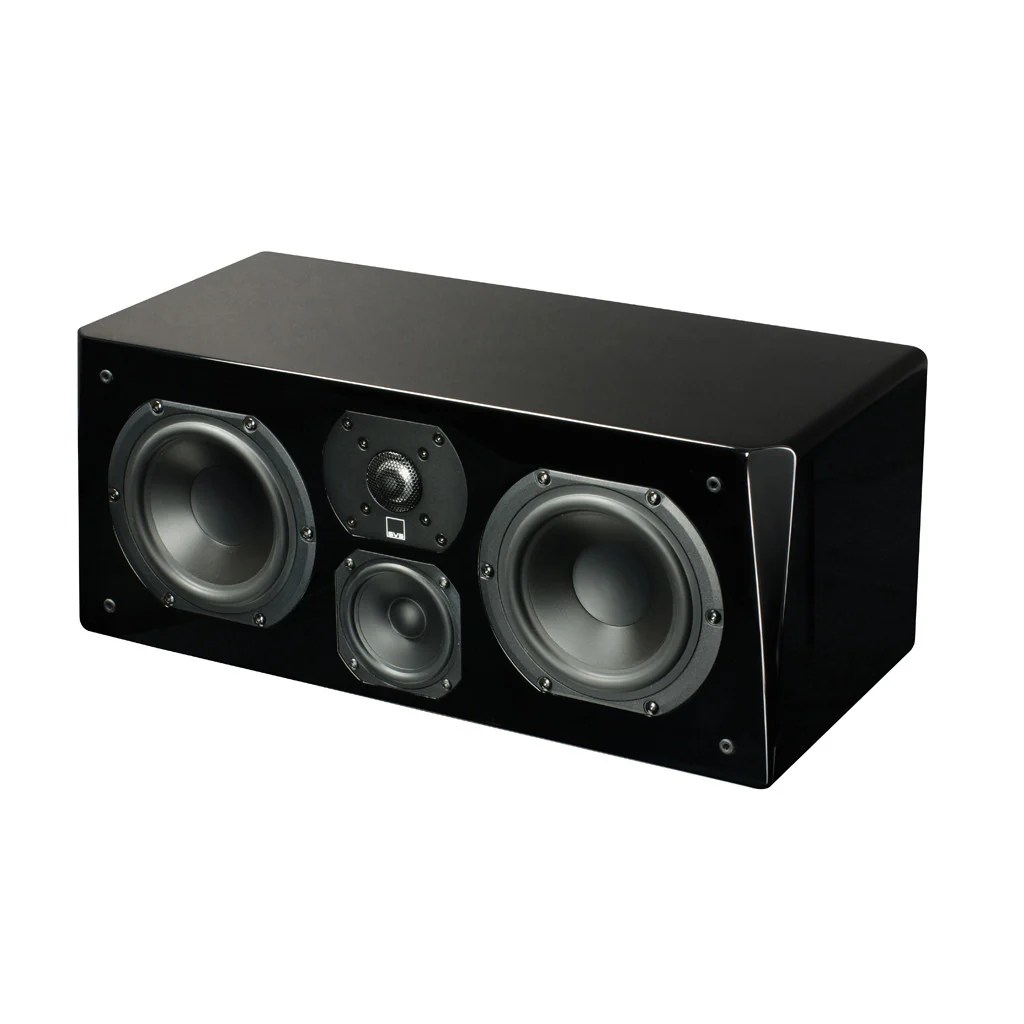

• Black ash and piano gloss black finish options

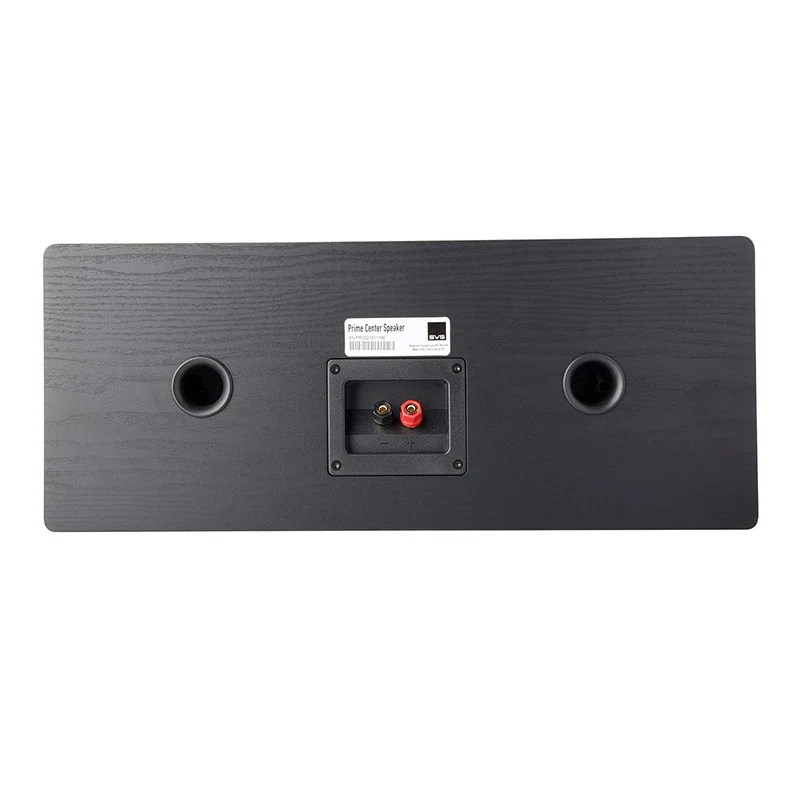

• Single set of 5-way binding posts
• Dual 1” wide-flared rear-firing ports
• Cloth grille with pin/cup retention system
• Elastomer stick-on bumper feet (adds 3mm to height)
• Center Channel Loudspeaker

• Cabinet Dimensions: 7.6″ (H) X 18.6″ (W) X 8.6″ (D)
• Overall Dimensions: 7.7″ (H) X 18.6″ (W) X 9.2″ (D) (includes grille and bumper feet)
• Shipped Dimensions: Shipped Dimensions: 12.2″ (H) X 23″ (W) X 13.4″ (D)
• Weight Unboxed: 20.2 pounds
• Shipped Weight: 23.3 pounds

Driver Specs: SVS Prime Center

1” Aluminum Dome Tweeter:

• FEA-optimized diffuser for airy and unveiled presentation
• Aluminum dome for exceptional transient response

3.5” Midrange Driver:

• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts

Dual 5.25” Woofers:

• Long stroke motor and suspension for high output
• Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
• Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
• Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
• Vented voice coil former minimizes air compression artifacts

Crossover & Cabinet Specs:

Crossover:

• 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
• Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes)
• Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes)

Cabinet:

• Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
• Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
• FEA-optimized cabinet and bracing eliminates resonances
